Case Cart

Surgical instrument case cart

RDM-023

Sterilization - MDR

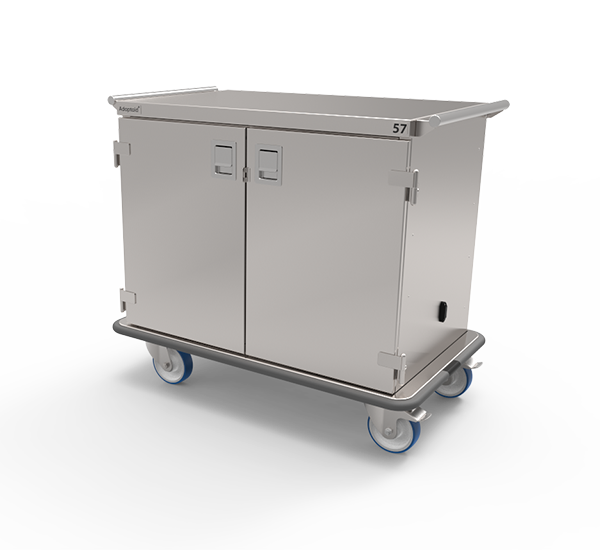

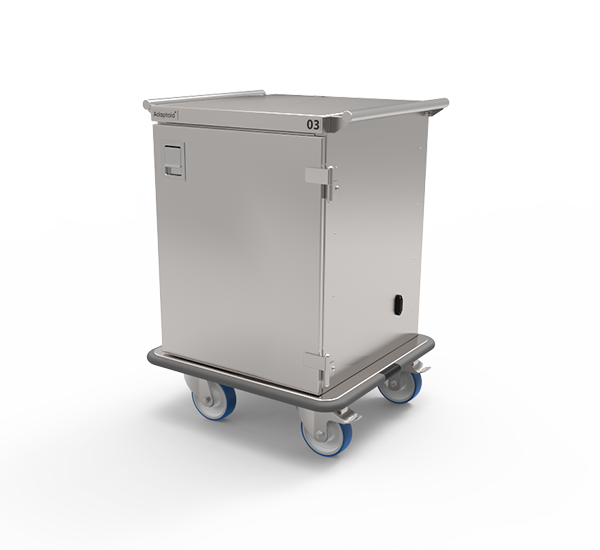

An essential tool from the Medical Device Reprocessing Department to the Operating Room. This surgical case cart is designed for the supply of medical instruments needed for operating room procedures. The case cart structure is made entirely of stainless steel with a reinforced floor and a drainage plane to facilitate the flow of water during cleaning. Reinforced, removable and height-adjustable sliding shelves and an open door locking device add to its many ergonomic features. This surgical case cart is compatible with automated washers.

Get a Quote Download the Brochure Get our Product Catalogue

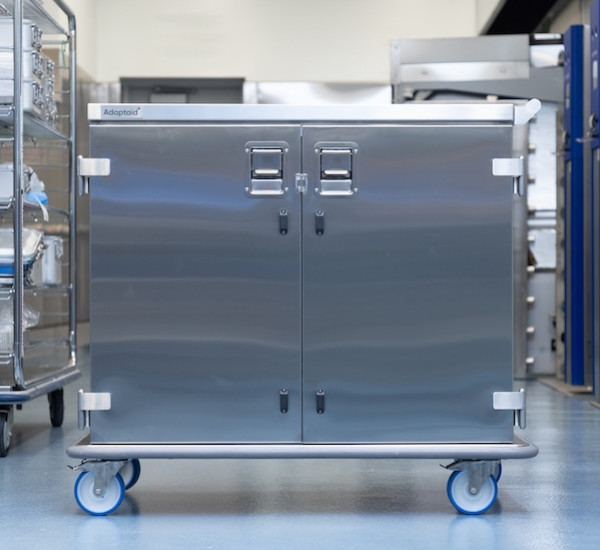

Our case cart in hospitals

Our Recommended Dimensions for Case Carts

Models	Overall Dimensions W x D x H		Inner Dimensions W x D x H		Doors
Models	inches	mm	inches	mm	Doors
RDM-CH-01-L	28 x 28 x 40	711 x 711 x 1016	23,19 x 24 x 28,25	589 x 610 x 718	1
RDM-CH-01-M	28 x 28 x 48	711 x 711 x 1219	23,19 x 24 x 36,25	589 x 610 x 921	1
RDM-CH-02-L	30,5 x 28 x 40	775 x 711 x 1016	25,69 x 24 x 28,25	652 x 610 x 718	1
RDM-CH-02-M	30,5 x 28 x 48	775 x 711 x 1219	25,69 x 24 x 36,25	652 x 610 x 921	1
RDM-CH-02-H	30,5 x 28 x 54	775 x 711 x 1372	25,69 x 24 x 42,25	652 x 610 x 1073	1
RDM-CH-03-L	43,5 x 28 x 40	1105 x 711 x 1016	38,69 x 24 x 28,25	983 x 610 x 718	2
RDM-CH-03-M	43,5 x 28 x 48	1105 x 711 x 1219	38,69 x 24 x 36,25	983 x 610 x 921	2
RDM-CH-03-H	43,5 x 28 x 54	1105 x 711 x 1372	36,69 x 24 x 42,25	983 x 610 x 1073	2

* For overall dimensions (including integral bumper) add 2.5 inches (64mm) in width and 0.5 inches (13mm) in depth.

** Height with standard 5 inch (125mm) wheels.

A Few Advantages of Our Case Carts

Easy control and maneuverability

Combined swivel and directional casters for effortless movement
Ergonomic handle
Non-marking bumpers resistant to high temperature washing
Locking system with anti-vibration latch

Useful, durable and solid features

Durable and waterproof chassis
Safety seal system
Compatible with high-temperature cart washers
Watertight doors to minimize the risk of cross-contamination and ensure patient safety
270-degree door swing with a fastening system
Card holder (dimensions in width and height 8.5 x 11 inches or 216 x 279 mm)

Case Cart Description

Structure

Welded monocoque structure made of stainless steel 304 #4
Reinforced floor with drainage plans
Reinforced cladding for silent movement
Non-marking wrap-around bumper
Bolted accessories for easy maintenance
See options

Shelves

Solid shelf with drainage holes
Adjustable height, indexed to 2'' (5 cm)
Easy adjustment without tools
See options

Doors

Double-walled with drainage holes
Fixed on two or three hinges
Locking device to secure the door in the open position (270° opening)
Security seal
See options

Casters

Made of corrosion-resistant stainless steel
Six inch (15.24 cm) diameter for strength
Two swivel and multidirectional casters with total brake on the handle side
Two directional casters on the side opposite the handle
Non-marking polyurethane provides excellent floor protection
Heat resistant and cart washers compatible
Sealed, maintenance free precision ball bearings
Capacity over 250 lbs
See options

Handle

Stainless steel handle
1.5748 inch (4 cm) diameter as recommended by ergonomists
Located on the left or right side (as desired)
See options

Optional equipment

Case Cart

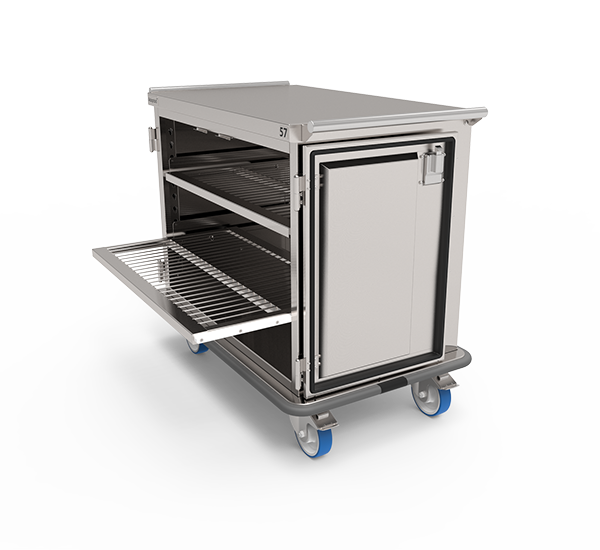

Sliding Shelf
The addition of a retractable solid or wire mesh shelf allows better access to medical devices inserted in the back of the cart. In addition, the sliding movement of the shelf facilitates the work of users while reducing the risk of musculoskeletal injuries.

All shelves are reinforced in the center to effectively carry the many medical instruments or sterile containers that can add to the weight load. With cross brackets, the shelves can be easily removed or repositioned to the desired height in two-inch (five-centimeter) increments.

Selection of Shelves
- Wire mesh shelves
- Pull-out shelf locks for tiltable cart washers
- Removable sliding shelves with a locking mechanism for 50% pull-out
Share
Case Cart

Additional Options
- Clean/soiled identifier
- Stainless steel casters
- Push handles on both sides
- Vertical handles for large carts
- Cool touch handle
- Retractable hitch system to tow multiple carts
- Directional locking mechanism with link bar connecting two casters
- Engraved plate with unique personal identification number
- Customized carts available with features that meet your specifications (special order)
Share
Case cart

Strong and durable casters

Four six-inch stainless steel casters with top plate mounting designed to provide mobility for equipment with a load capacity of up to 250lb.

The case cart wheels have thermoplastic polyurethane tread designed to withstand the heat of cart washers and are quiet when rolling.

The standard configuration includes two swivel casters and two other caster that are directional for straight line transport over long distances.

To facilitate movement and parking in a tight spaces, the two directional casters can be replaced by two swivel casters with a combined directional lock that is activated with a single pedal accessible from either side when standing.

For effective braking, two of the four casters are equipped with a total lock brake to ensure stability when the cart is positioned on uneven ground. Easy to use, the brakes can be activated by a simple foot pressure when standing.

Activating the stationary mode also provides users with a safe and stable work position for storing instrumentation.

Share
Case Cart

Double-Walled Watertight Doors

Sealed doors provide additional aseptic protection and quiet cart movement.

Washing, loading and unloading of the case cart is made easy with 27O degree door swing. During case cart washing and preparation, the doors can be secured on the sides of the cart making the surgical instrument storage area accessible.

The doors are retained either by a locking device or by magnets, depending on the option chosen when ordering.

In the case of the locking device, a simple lever is quickly put in place by the user to secure the door in place.

For carts equipped with magnetic door retainers, simply folding the doors down on the side walls will lock the door open to 270 degrees.

In order to keep intact the medical equipment that is transported to OR, the doors are equipped with an anti-vibration latch and a safety seal.

Share
Case Cart

Maintenance and Cleaning

Maintenance

This product is maintenance free. Its heavy-duty casters have precision ball bearings and require no lubrication for the life of the product.

Cleaning with Automated Cart Washers

This cart is compatible with high temperature washers.

Manual surface cleaning

Clean surfaces with a clean cloth soaked in a diluted, non-abrasive disinfectant or cleaning solution. After cleaning, wipe all surfaces thoroughly with a disposable cloth and allow to dry. Do not use steel wool or any other abrasive product, as these may damage the surfaces. Before using any cleaning product, test a small, inconspicuous area to test the surface for potential damage. Disinfectant sprays or wipes can also be used for cleaning and disinfecting.

The frequency of cleaning depends on usage as well as the surrounding conditions. Check with your infection control department for the proper cleaning procedure.

Suggested cleaning solutions:

- Sodium hypochlorite 1.5% (bleach), 1:10 dilution

- Isopropyl alcohol 60-70%.

- Hydrogen peroxide, accelerated formula 0.5

- Liquid soap

Always follow the dilution instructions and the advice of the manufacturers of the cleaning products used.
