Endoscope Storage and Drying Cabinets
MEDISTOR
Endoscopy
Operating Room
Storage Cabinet for Endocavity Probes
MEDIPROB
EDS-028
These cabinets are designed to provide a safe and hygienic storage environment for disinfected endocavitary ultrasound probes. The line includes models with sliding shelves for enhanced ergonomics and compact models with individual compartments for spaces with layout challenges. Made entirely of 304-grade stainless steel and ventilated with a HEPA filter, these cabinets for endocavitary ultrasound probes are available with controlled door opening and a comprehensive traceability system. Capacity ranges from 4 to 16 gynecological and urological endocavitary probes, depending on the cabinet model selected.
Get a Quote Download the Brochure Get our Product CatalogueStorage Cabinet with Individual Compartments for Endocavity Probes

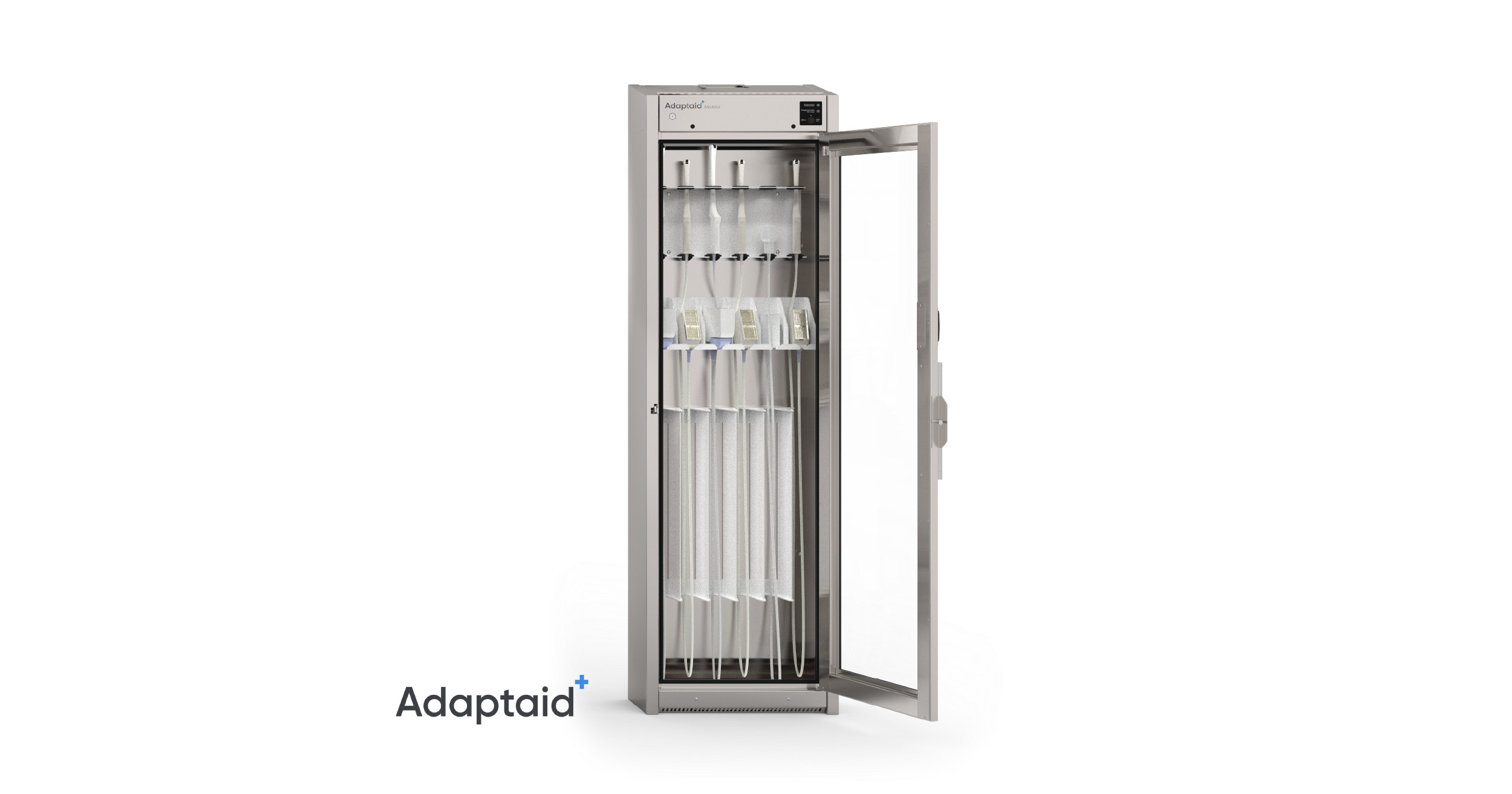

The cabinet with individual compartments features an ultra-compact interior with a depth of ten inches (254 mm). The interior layout includes cable ports and a shelf designed to support the connector and relieve stress on the probes. The lower section is equipped with elongated vertical walls that prevent contact with the various probes suspended inside the cabinet. The capacity of cabinets with individual compartments ranges from 4 to 12 endocavity probes.
| Models | Endocavity Probe Capacity | Number of doors | Traceability System | Dimensions (W x D x H) | |
|---|---|---|---|---|---|
| Inches | Millimeters | ||||
| EDS-028-1810 | 4 | 1 | √ | 18 x 10 x 80 | 457 x 254 x 2032 |
| EDS-028-2410 | 6 | 1 | √ | 24 x 10 x 80 | 610 x 254 x 2032 |
| EDS-028-3010 | 8 | 1 | √ | 30 x 10 x 80 | 762 x 254 x 2032 |
| EDS-028-3810 | 10 | 2 | √ | 38 x 10 x 80 | 965 x 254 x 2032 |
| EDS-028-4610 | 12 | 2 | √ | 46 x 10 x 80 | 1168 x 254 x 2032 |
* The models listed above are also available without the traceability system.
Storage Cabinet with Sliding Holders for Endocavity Probes
Each endocavity probe holder in the cabinet with sliding holders is equipped with adjustable polyurethane storage bases. The arrangement of the probes on a retractable frame makes it easier for users of all heights to work, thanks to easy access to instruments positioned at an ergonomic height. The capacity of the sliding probe holders ranges from 8 to 16 probes, depending on the model selected. These cabinets are also available in pass-through versions.
| Models | Endocavity Probe Capacity | Traceability
System |
Dimensions (W x D x H) | |
|---|---|---|---|---|
| Inches | Millimeters | |||
| EDS-026-XE01 | 8 | √ | 24 x 24 x 90 | 610 x 610 x 2286 |
| EDS-026-XE02 | 12 | √ | 34 x 24 x 90 | 864 x 610 x 2286 |
| EDS-026-XE03 | 16 | √ | 44 x 24 x 90 | 1118 x 610 x 2286 |
* The models listed above are also available without the traceability system.
Advantages of the Storage Cabinet for Endocavity Probes
Direct front access to probes.
Individual vertical storage.
Evenly distributed LED lighting.
Soft molded holders to prevent damage to probes.
Sealed HEPA filtered cabinet to maintain positive pressure and ensure an aseptic environment.
Description of the Storage Cabinet for Endocavity Probes
Frame
100% stainless steel construction
Probe Holders
Rounded and soft molded probe holders
Individual compartments designed for individual, vertical, non-contact suspension
Shelves with openings designed for the passage of probe cables
Filter
99.97% HEPA filters for the inner chamber
Air inlet and outlet pre-filters
Filter replacement indicator
Front access for filter change
Air filtration
Continuous positive pressure
Vertical ventilation from top to bottom, evenly distributed
Ventilation blockage / failure indicator
Doors
Available with left or right hand opening
Tempered glass
Perfectly sealed
Open door warning alarm
Mechanical lock
Other features
LED lighting
Two wall anchor bars
Additional options available
Traceability system
Custom holders for special applications
Code or RFID lock
Compliance
Made in Canada.
Mediprob cabinets meet or exceed the guidelines and best practice recommendations of the Association for the Advancement of Medical Instrumentation (AAMI ST91:2021 and AAMI TIR99:2024), the Centers for Disease Control and Prevention (CDC Guidelines for Disinfection and Sterilization in Healthcare Facilities), The Joint Commission (TJC), the CSA Group (CSA), notably the CSA Z314:23, IPAC Canada (Infection Prevention and Control Canada) and Public Health Agency of Canada (PHAC).
