Probe Tray
Tray with Lid for Medical Instruments
Ultrasound
Probe Transport Cart
Medical Instrument Transport Cart
EDS-030-P005
The probe transport cart is specially designed to optimise the transport of clean or soiled probes from the reprocessing department to the examination rooms and vice versa. Thanks to its ergonomic structure, the trolley offers great stability and manoeuvrability and is easily cleanable and compatible with automated washers.
Get a Quote Download the Brochure Get our Product CatalogueAdvantages
Possibility of having an open structure or two closed sides
Stainless steel swivel wheels, two with total brake
Ergonomic handle for easy control and maneuverability
Non-marking polyurethane bumpers on all four corners
Compatible with most hospital washer systems
Description
Designed to transport probe trays efficiently and safely, this agile and durable cart is made entirely of stainless steel. Versions available are:
Cart open on a single side
Cart open on two sides (for easy access to probe trays)
Fully enclosed cart with double doors

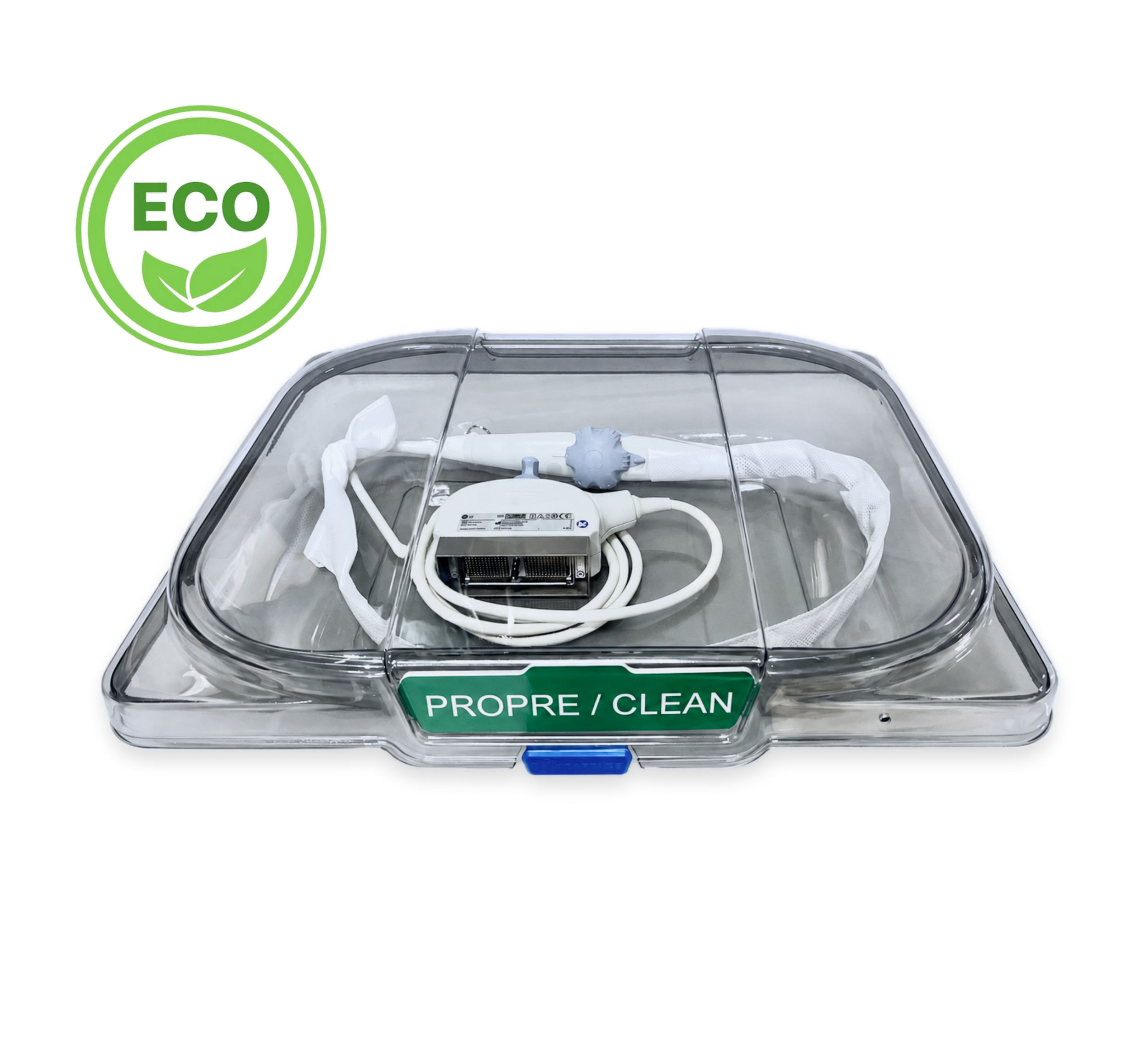

Compatible with probe transport trays and reusable lids EDS-030-P003. These molded trays with rounded inner corners, minimize cleaning time and provide a strong protective shell to keep scopes in good condition. In addition, no consumables are required which significantly reduces operating costs while providing an environmentally friendly solution.
Stored individually in the trays and then placed on the transport cart rails, probes are protected from damage while reducing the risk of cross-contamination of probes in transit or awaiting reprocessing.
The probe transport cart is part of a complete range of products that facilitate probe reprocessing by allowing the safe transport of 5 or 7 probes (depending on the cart model chosen).

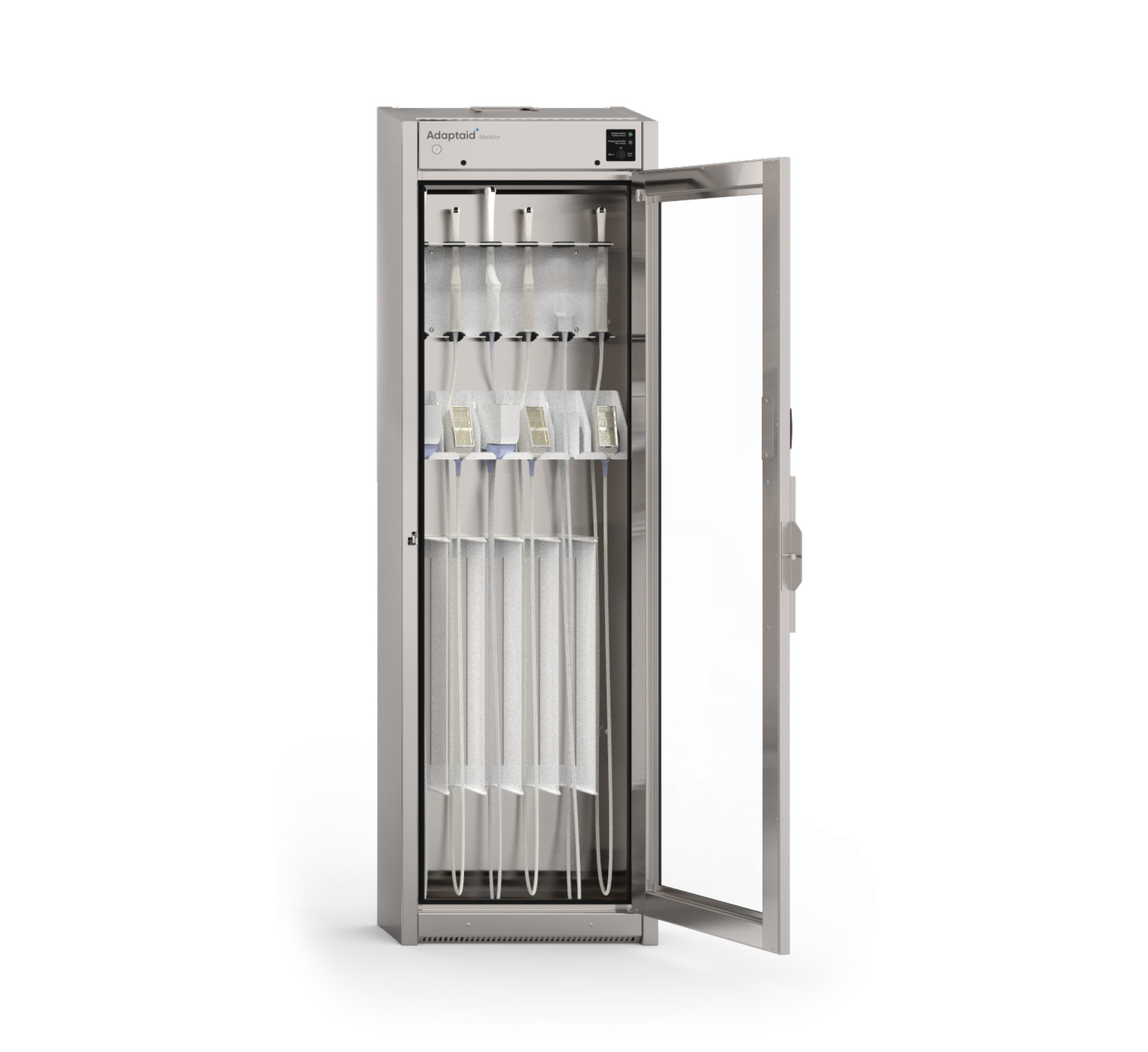

In addition to the probe cart and transport trays, this range also includes probe storage cabinets. Thanks to the numerous dimensions and options offered (channel ventilation, traceability, etc.), a complete package is available to meet the requirements of medical staff, optimize probe reprocessing processes and contribute to patient safety.
The probe transport carts are available in several models and with different load capacities to meet the most diverse needs of ultrasound and MDR departments.
Specifications
|
Models
|
Capacity
|
Dimensions W x D x H
|
Structure
|
Doors
|
|
|---|---|---|---|---|---|
|
|
Probe Trays
|
Inches
|
Millimeters
|
|
|
|
EDS-030-P005
|
5
|
28.5 x 20.3 x 38.5
|
724 x 514 x 978
|
Open on 1 side
|
0
|
|
EDS-030-P005-O
|
5
|
28.5 x 20.3 x 38.5
|
724 x 514 x 978
|
Open on 2 sides
|
0
|
|
EDS-030-P005-F
|
5
|
28.5 x 20.3 x 38.5
|
724 x 514 x 978
|
Closed
|
2
|
|
EDS-030-P006
|
6
|
28.5 x 20.3 x 43.5
|
724 x 514 x 1105
|
Open on 1 side
|
0
|
|
EDS-030-P006-O
|
6 |
28.5 x 20.3 x 43.5
|
724 x 514 x 1105
|
Open on 2 sides | 0 |
|
EDS-030-P006-F
|
6 |
28.5 x 20.3 x 43.5
|
724 x 514 x 1105 |
Closed
|
2 |
Structure
Sturdy, light and easy to clean frame
Solid structure and assembly made of grade 304 stainless steel
Transport Trays
Eco-responsible transport trays with transparent lids requiring no liner. See details.
Tray Rails
Equipped with retaining stops for safe movement
Wheels
Five-inch (125 mm) diameter for the four swivel and multidirectional wheels
Maintenance-free sealed ball bearings
Brakes
Two wheels with brakes to safely the cart safely stationary
Bumpers
Non-marking bumpers in each corner to reduce the risk of incidents
Handle
Ergonomically positioned push bar for effortless transport
Additional Options
Customizable dimensions as required
Possibility to add double doors
Open model (without rear panel)
Reusable trays with reversible "clean" and "soiled" lids and identifiers (EDS-030-P003), sealing options, traceability labels, etc.
Compliance
Designed in accordance with industry and medical standards and recommendations.
Made in Canada
