Endoscope Storage and Drying Cabinets

MEDISTOR drying and storage cabinets have been designed to offer high-drying efficiency thanks to the vertical positioning of the endoscopes. To speed up the drying process, the vertical position of the flexible parts of the endoscopes allows gravity to facilitate the flow of water and minimize the risk of water accumulating inside the endoscope. To prevent any deterioration in the microbiological quality of stored endoscopes, the cabinet has airtight doors and is ventilated with HEPA filtered air. This ensures a controlled and safe environment.

MEDISTOR cabinets are equipped with a comprehensive traceability system and channel ventilation. During channel ventilation, airflow follows the direction of gravity, beginning with an initial purge followed by continuous positive pressure ventilation. The endoscope channels are ventilated using a ventilation system equipped with HEPA filters that is independent of the cabinet’s ventilation system.

All MEDISTOR cabinets have been carefully developed to meet and exceed the Public Health Agency of Canada's INFECTION PREVENTION AND CONTROL GUIDELINE for Flexible Gastrointestinal Endoscopy and Flexible Bronchoscopy.

Single-Row Storage

Single-row storage facilitates endoscope accessibility. Arranged in a straight line, endoscopic instruments are all visible and stored without any contact between the flexible channels suspended vertically in the HEPA air-filtered cabinet. This arrangement of endoscopes minimizes the risk of cross-contamination.

* The dimensions of HEPA-ventilated endoscope storage and drying cabinets can be adapted as required.

Double-Row Storage

Divided into two parallel rows, the ventilated cabinet's interior is optimized for storing and drying a large number of flexible endoscopes in a small space. Molded hooks follow the shape of endoscopic devices to protect their integrity without creating tension.

* The dimensions of HEPA air-filtered endoscope storage cabinets can be adapted as required.

Storage on Sliding Holders

Endoscope storage on sliding holders offers an ergonomic solution for medical staff. An easily retractable device on which four flexible endoscopes can be suspended with the aid of guides enables safe storage in the HEPA air-filtered cabinet. In addition, endoscopes are stored individually without contact inside vertical storage partitions. To make it easier for users to access the endoscope, the instrument hooks are positioned at an ergonomic height on pull-out rails.

* The dimensions of HEPA-ventilated endoscope storage cabinets can be adapted as required.

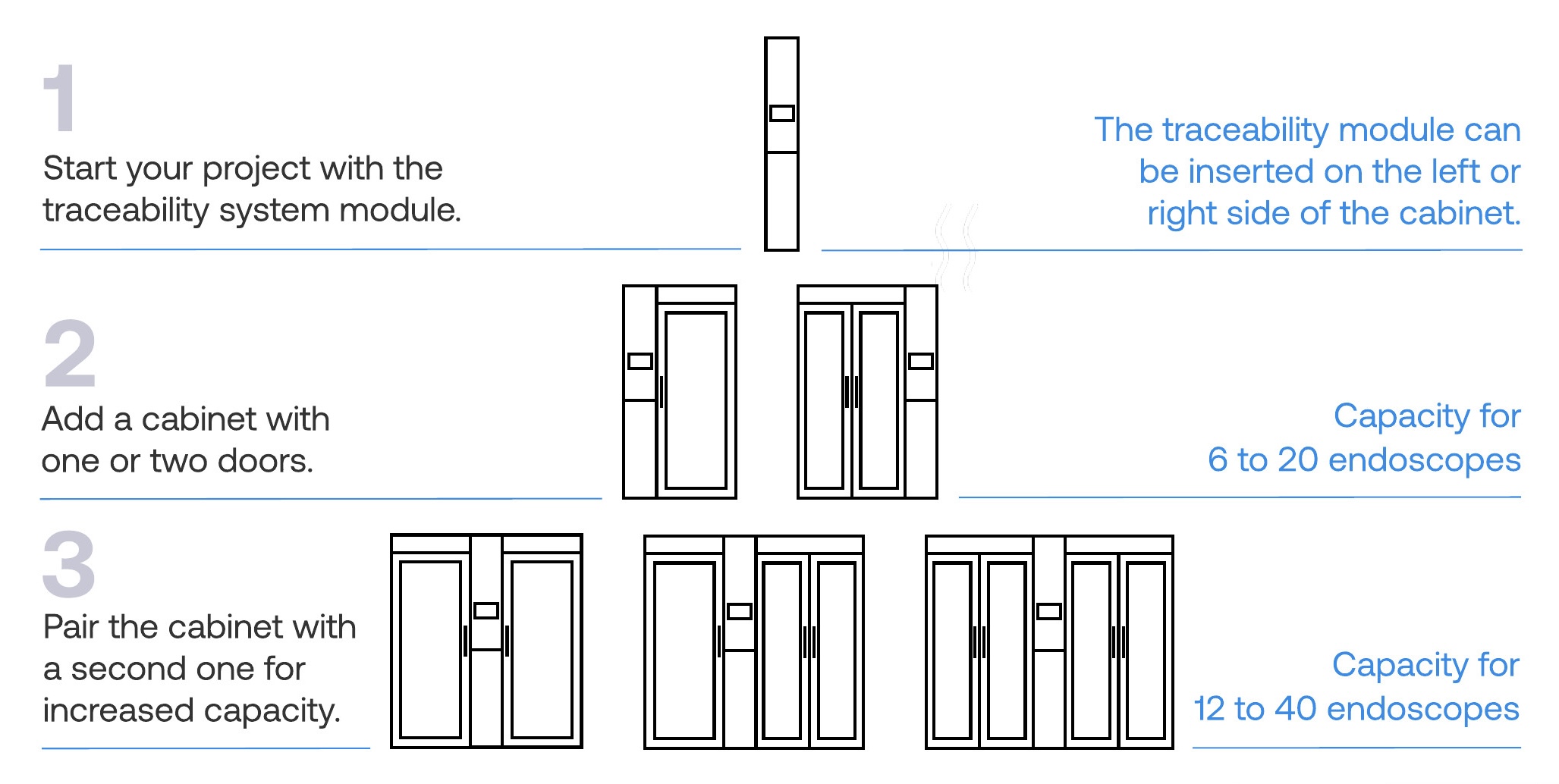

Configure Your MEDISTOR Storage Cabinet to Meet Your Needs

What benefits can you expect with the HEPA Ventilated Endoscope Storage Cabinet with Traceability?

Durable and strong stainless steel structure

• Continuous positive-pressure HEPA filtered ventilation of storage chamber and channels

• Comprehensive traceability system accessible locally and remotely

• Numbered endoscope holders with soft molded hooks

• Airtight doors with large windows

• Evenly distributed LED lighting

• Contact-free individual storage

• User-friendly filter access

• Electromechanical locking

• Manual emergency door opener

Description of the the HEPA Ventilated Endoscope Storage Cabinet

• Robust stainless steel construction with glass doors

• Sloped top

• Reinforced base with levelers to ensure a vertical position is maintained

• Bolt-on accessories for easy maintenance without special tools

• Front access for filter change

• Also available with the Pass-through option

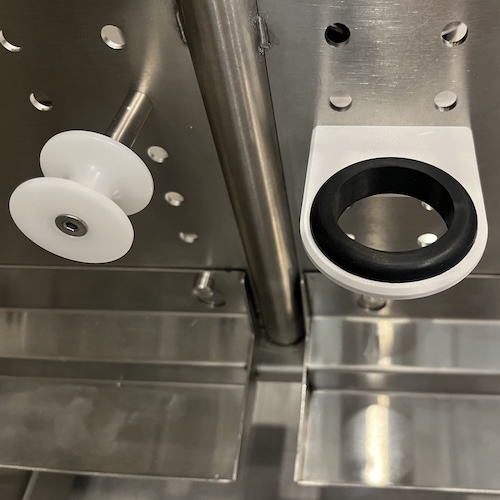

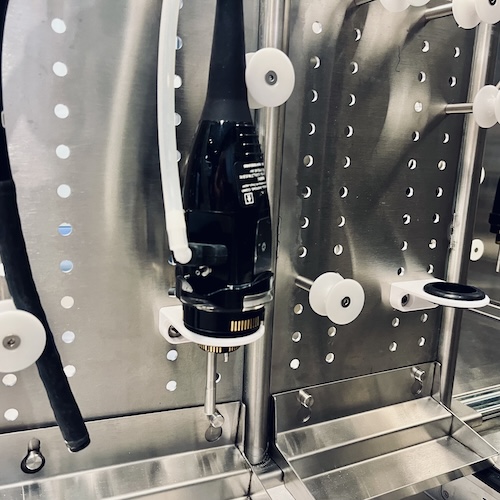

Scope Holders

• Holders for endoscopes with soft mold

• Custom configurations available according to endoscope brand and model

• See otions

HEPA Filters

• 99.97% HEPA filters

• Air inlet and outlet pre-filters

• Dedicated HEPA filter for channel ventilation

• Filter replacement indicator

Ventilation of the Endoscope Cabinet Chamber

• Continuous positive cabinet pressure

• Vertical ventilation from top to bottom, evenly distributed

• Ventilation failure indicator

Channel Ventilation

• Positive channel pressure

• Adjustable timer for channel ventilation

• Channel ventilation failure indicator

• Top to bottom ventilation

Airtight Doors

• Tempered glass

• Gasket sealed

• Open door warning alarm

• Electromechanical lock

• Choice of left- or right-hand opening for single-door models

Traceability System

• Ten-inch (254 mm) color touch screen

• Color codes and pictograms for quick reading

• Fast recording of instrument entries and exits

• Monitoring and control of the cabinet, users, and instruments

• Simplified identification of instrument status

• Events and alarms recorded in the logbook

• Various customizable reports

• See options

Other Features of the HEPA Ventilated Endoscope Storage Cabinet

• Removable stainless steel drip tray for easy cleaning

• LED lighting for excellent visibility of endoscopes and their identification.

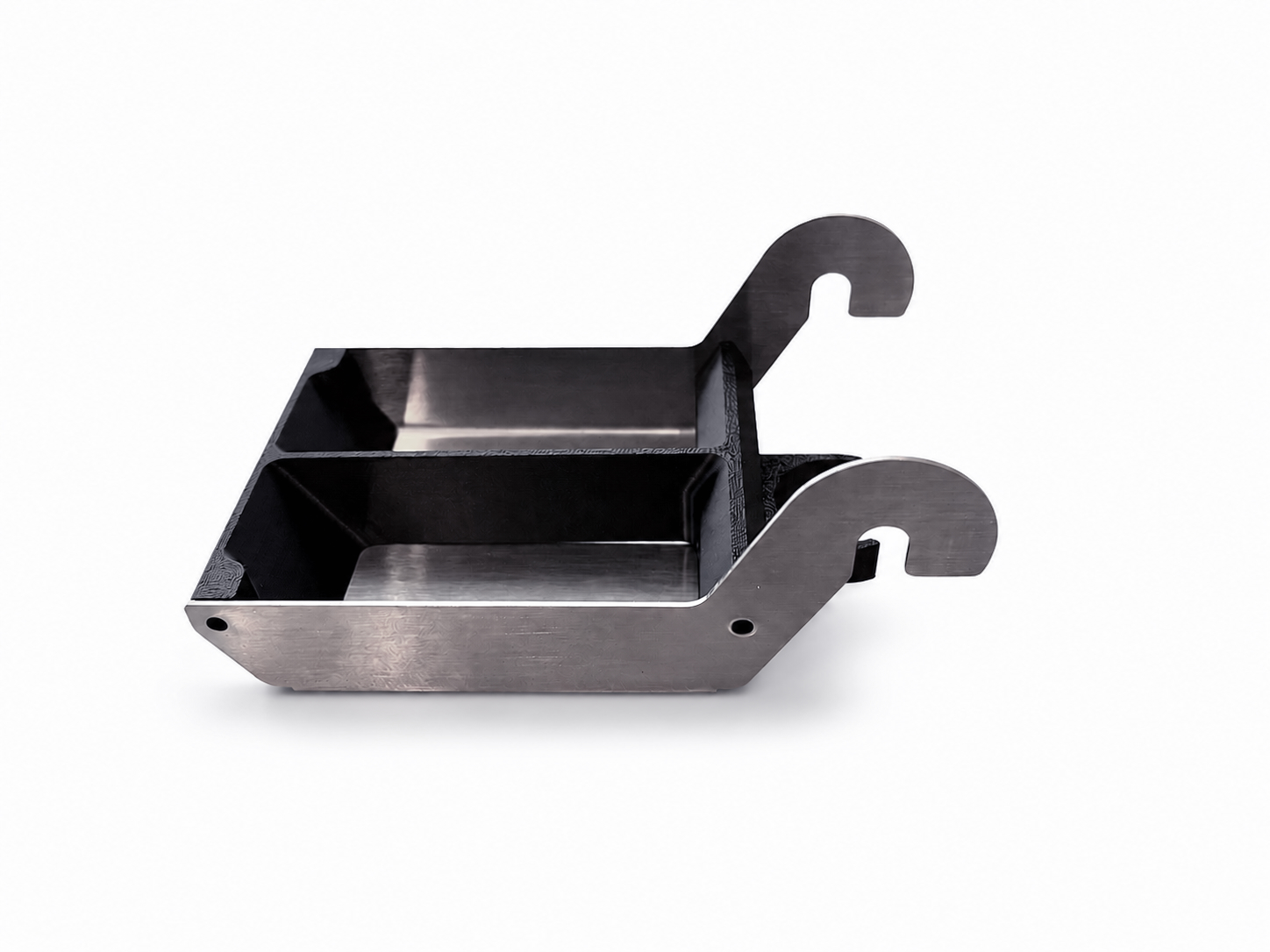

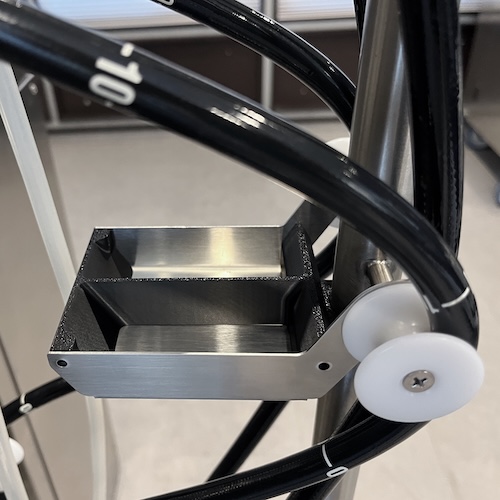

• Storage for individual accessories to accommodate various needs according to specific requirements.

Compatibility

• Customizable ventilated cabinets designed to fit all popular brands of endoscopes such as Fujifilm, GE, Olympus, Pentax, Storz, Xion.

Compliance

• Made in Canada

• MEDISTOR cabinets meet or exceed the guidelines and best practice recommendations from the Association for the Advancement of Medical Instrumentation (AAMI ST91:2021), the CSA Group (CSA), particularly CSA Z314:23, as well as the Public Health Agency of Canada (PHAC) and IPAC Canada (Infection Prevention and Control Canada).
