Adaptaid

AquaDial Mobile Water Treatment Unit

AquaDial
CHH01A-P001
Dialysis - Medical Water Treatment

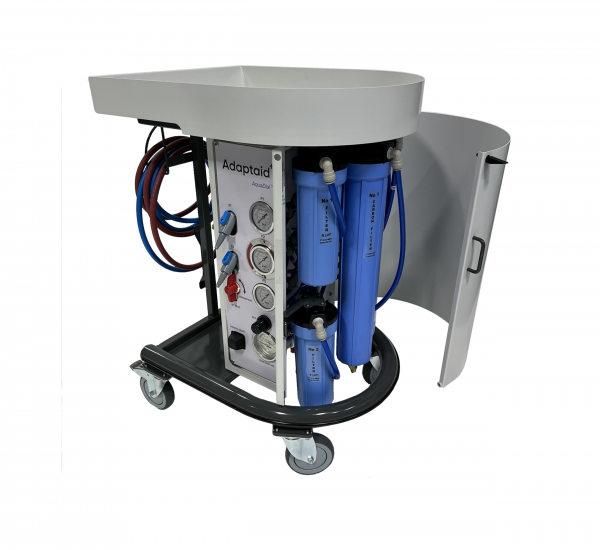

The AquaDial is a versatile and functional medical cart, designed for the pre-treatment of medical water required for dialysis care in hospitals as well as in other locations requiring mobile hemodialysis care (at home, dialysis centers, private clinics, etc). The AquaDial's closed structure helps to maintain aseptic conditions and it is a significant asset when used in intensive care. Maintenance is made easy through the openable side panel where filters and accessories are housed. The top of the cart serves as a large accessory tray. Two distinct models are available: one with granular carbon tanks (Model WT) and/or one with carbon filters (Model WF).

Get a Quote Download the Brochure Get our Product Catalogue

Specifications

Models Fiitration Compatibility With RO

CHH01A-P001 (WT)

Granular Carbon Tanks WRO 300, WRO 300H, Millenium HX
and other RO systems

CHH01B-P001 (WF)

Carbon Filters WRO 300, WRO 300H, Millenium HX
and other RO systems

Advantages

  • Enclosed housing to facilitate sanitization.

  • Mobile unit to accommodate individual treatments.

  • Portable sturdy construction suited to emergency.

  • Provides purified water to the reverse osmosis system (RO).

  • Filtration is performed by carbon and granular filters, which protects and reduces the maintenance required on RO systems.

  • Control panel that facilitates the monitoring of system pressure and temperature

  • Sampling valves to verify water purity

  • Large accessory tray

Watch the AquaDial in hospitals


Description

The Aquadial is designed to be used with WRO-300, WR0-300H or the MILLENIUM HX reverse osmosis systems. Its filtration equipment protects the patient and the RO membranes from chlorine and chloramines. It also removes low molecular weight organic substances dissolved in the water feeding the system. This extends the life duration of the membranes and minimizes the maintenance requirements of the RO system.

Structure

  • Welded construction with baked-on powder coating.

Control Panel

  • A control panel for easy monitoring of the system pressure and temperature

  • Three pressure gauges

  • Two sampling valves

  • Two bypass valves

  • One thermostatic mixing valve

  • One pressure regulator

  • One temperature gauge

Sampling Valves

  • Sampling valves for water purity verification

  • Check valves on feed water inlets

Filtration

  • Model CHH01A-P001 (WT): Two 6 x 18 inches (152 x 457 mm) granular carbon tanks, 10-inch (254 mm) sediment filters (1 and 5 µm).

  • Model CHH01B-P001 (WF): Two 20-inch (508 mm) carbon cartridges, 10-inch (254 mm) sediment filters (1 and 5 µm).

Dimensions

  • Dimensions in width, depth and height: 22.5 x 29.5 x 36 inches, 571 x 749 x 914 mm

Wheels

  • 5-inch diameter (125 mm)

  • Two swivel wheels

  • Two fixed wheels with brakes

  • Maintenance-free ball bearings

Accessories

  • 6 x 18 inches (152 x 457 mm) carbon tank

  • 10-inch (254 mm) Sediment filters (1 and 5 µm)

  • 20-inch (508 mm) carbon cartridges

Compliance

  • Designed according to the standards and recommendations in force in the industry and the medical environment.

  • Made in Canada
