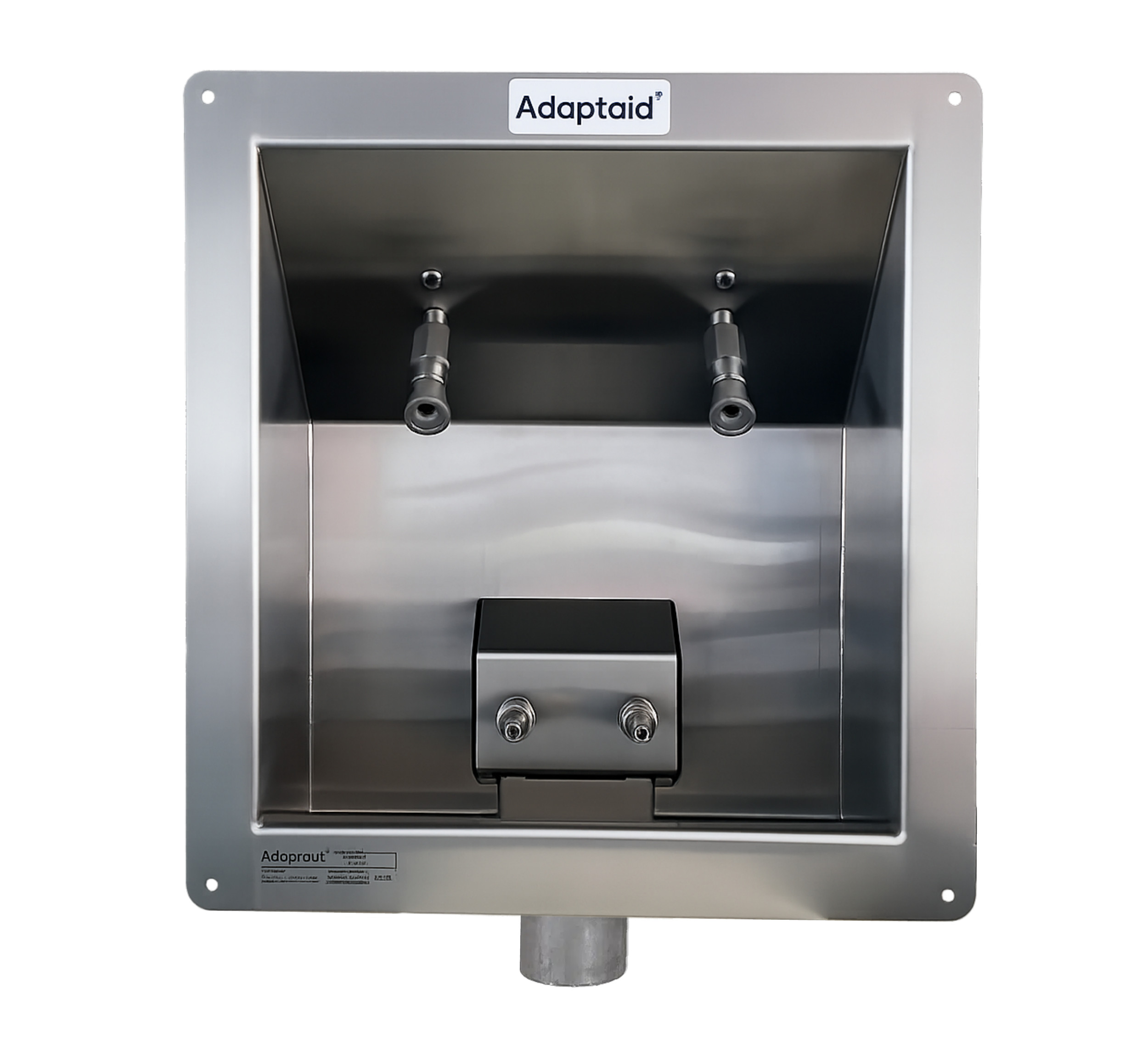

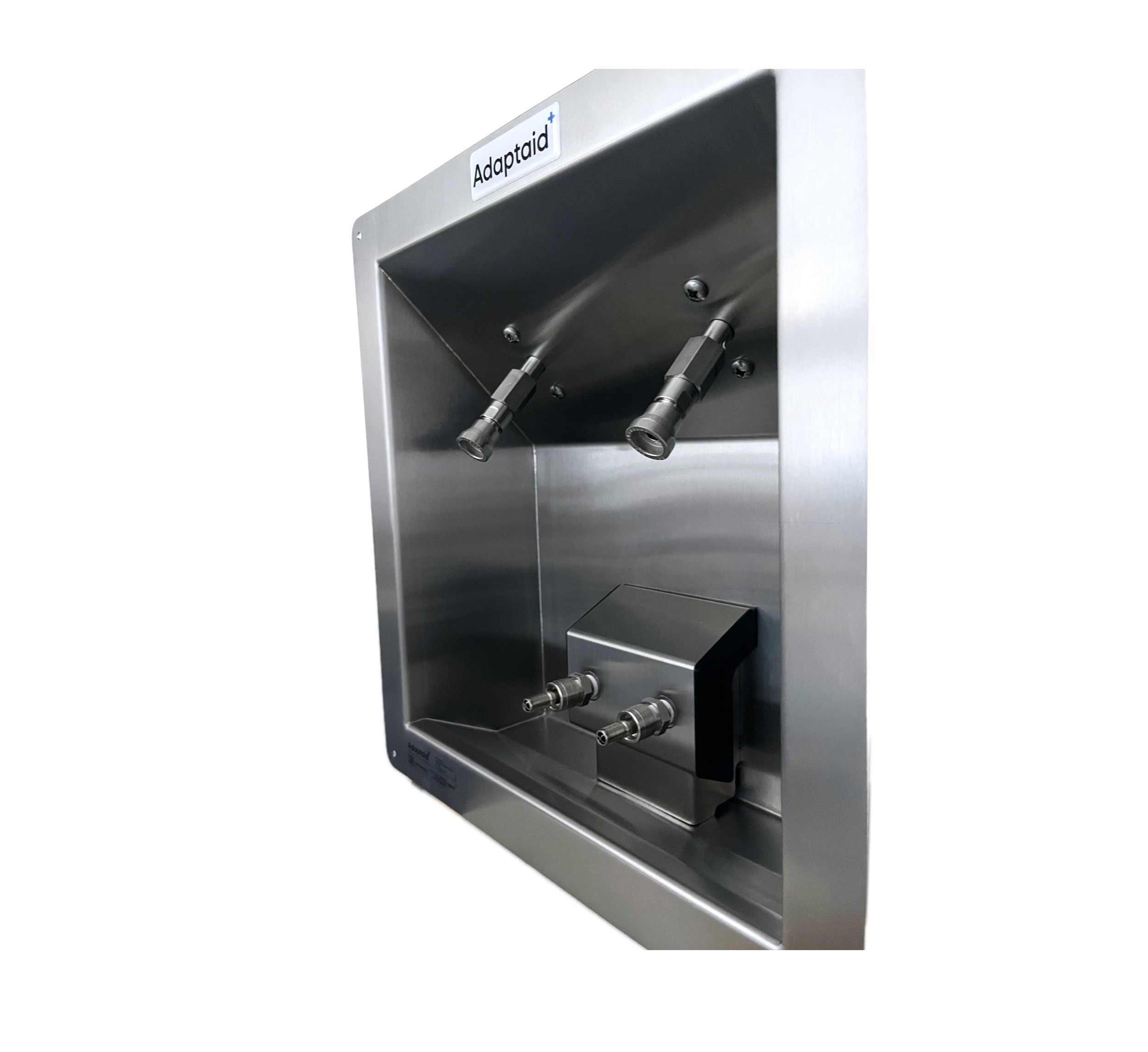

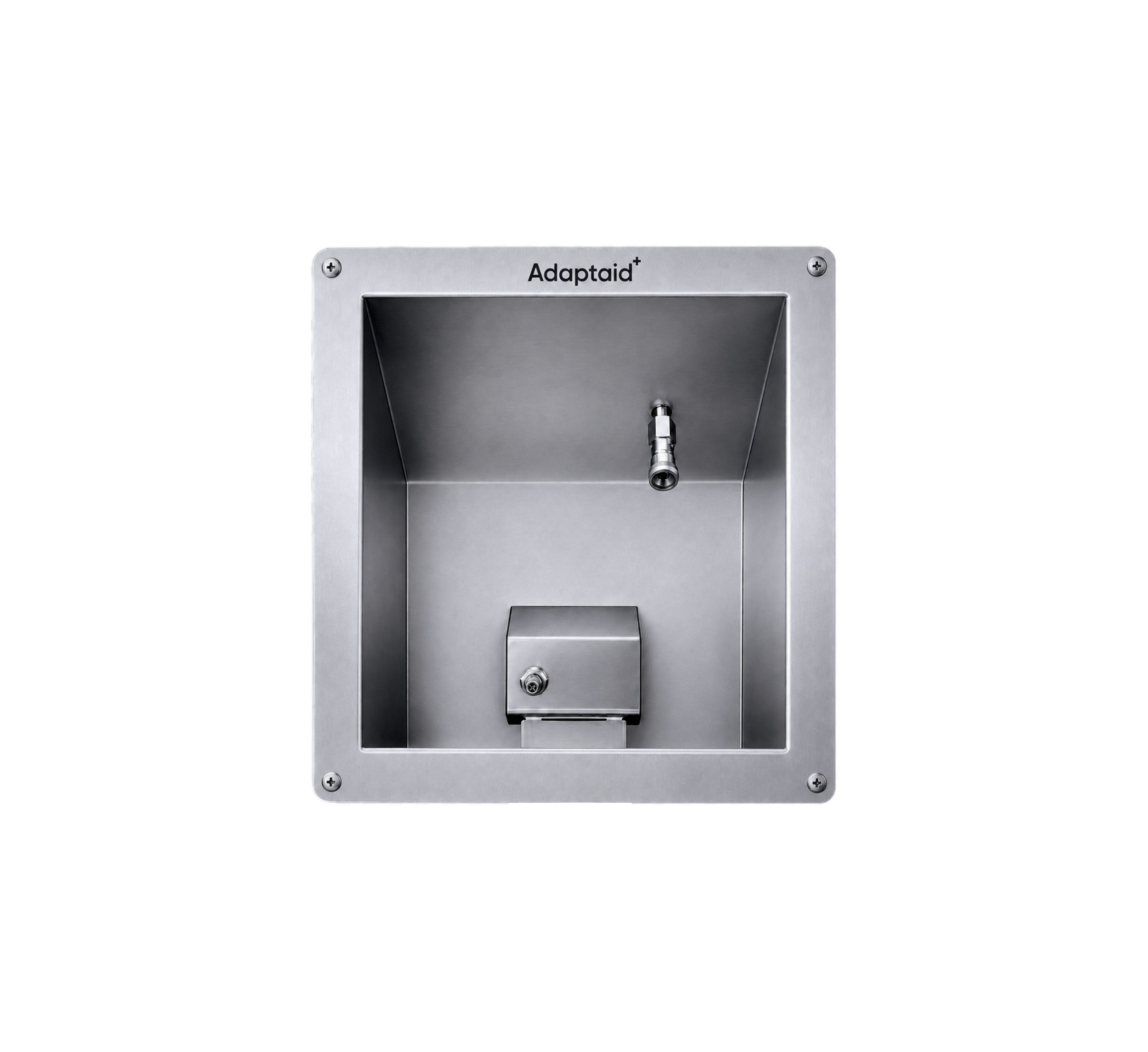

Dialysis Wall Box Station

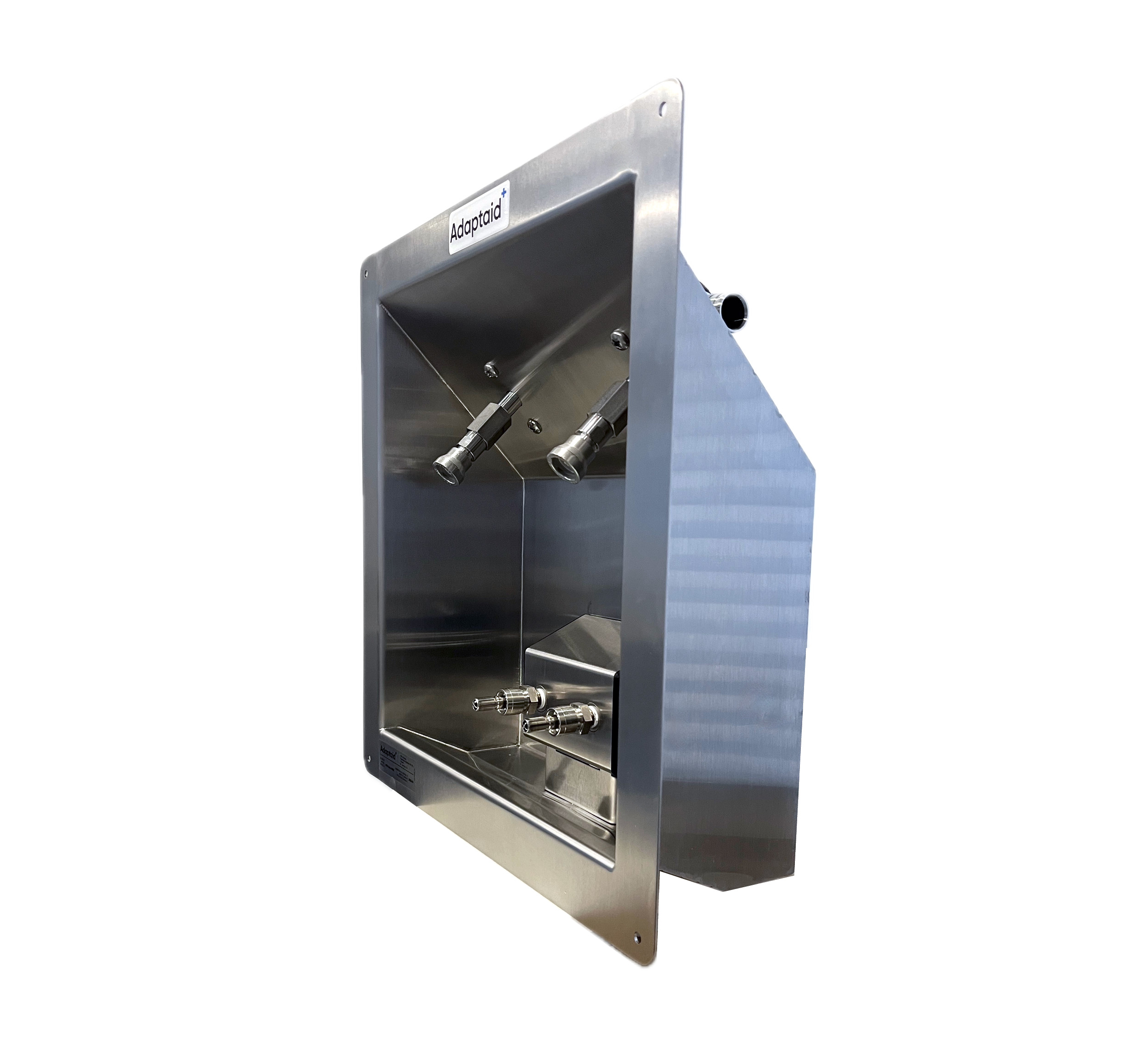

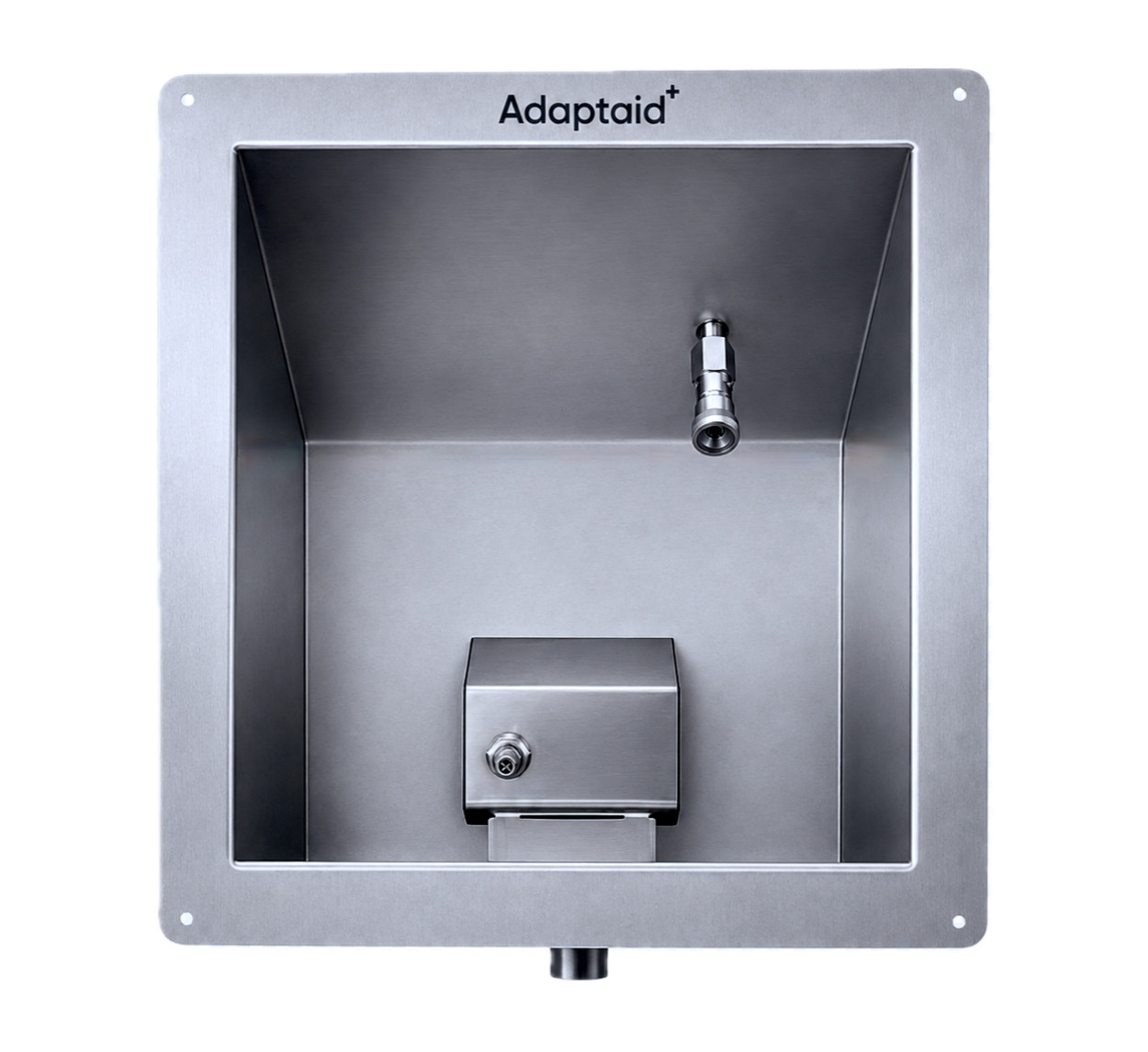

Stainless steel wall-mounted sink with a single or double connection to the purified water supply and a single or double connection to an air-gap drainage block.

All of the station’s water distribution components are designed to maintain a clean and safe environment, offering hospitals a premier solution for obtaining the medical-grade water required for hemodialysis treatments.

This station is designed to withstand periodic heat disinfection in order to maintain the microbiological integrity of the water distribution system.

The sloped wall of the wall-mounted housing allows for clean drainage from the fittings, and the enclosed wastewater collection compartment prevents splashing and foaming.

This wall-mounted box is specifically designed for use with heat-disinfected reverse osmosis systems.

Key Benefits

• A station with a single, or dual supply connection to allow for two simultaneous hemodialysis treatments.

• A versatile solution compatible with a wide variety of water and connection options, including high-purity water connections and raw water connections (optional).

• Ideal for replacements, as its dimensions easily fit into the openings of wall-mounted stations being replaced.

• Minimizes the risk of cross-contamination thanks to the wastewater drainage compartment, which prevents splashing onto the pure water connections and other components.

• Smooth, easy-to-clean surfaces.

• Corrosion-resistant materials for long service life and rock-solid reliability.

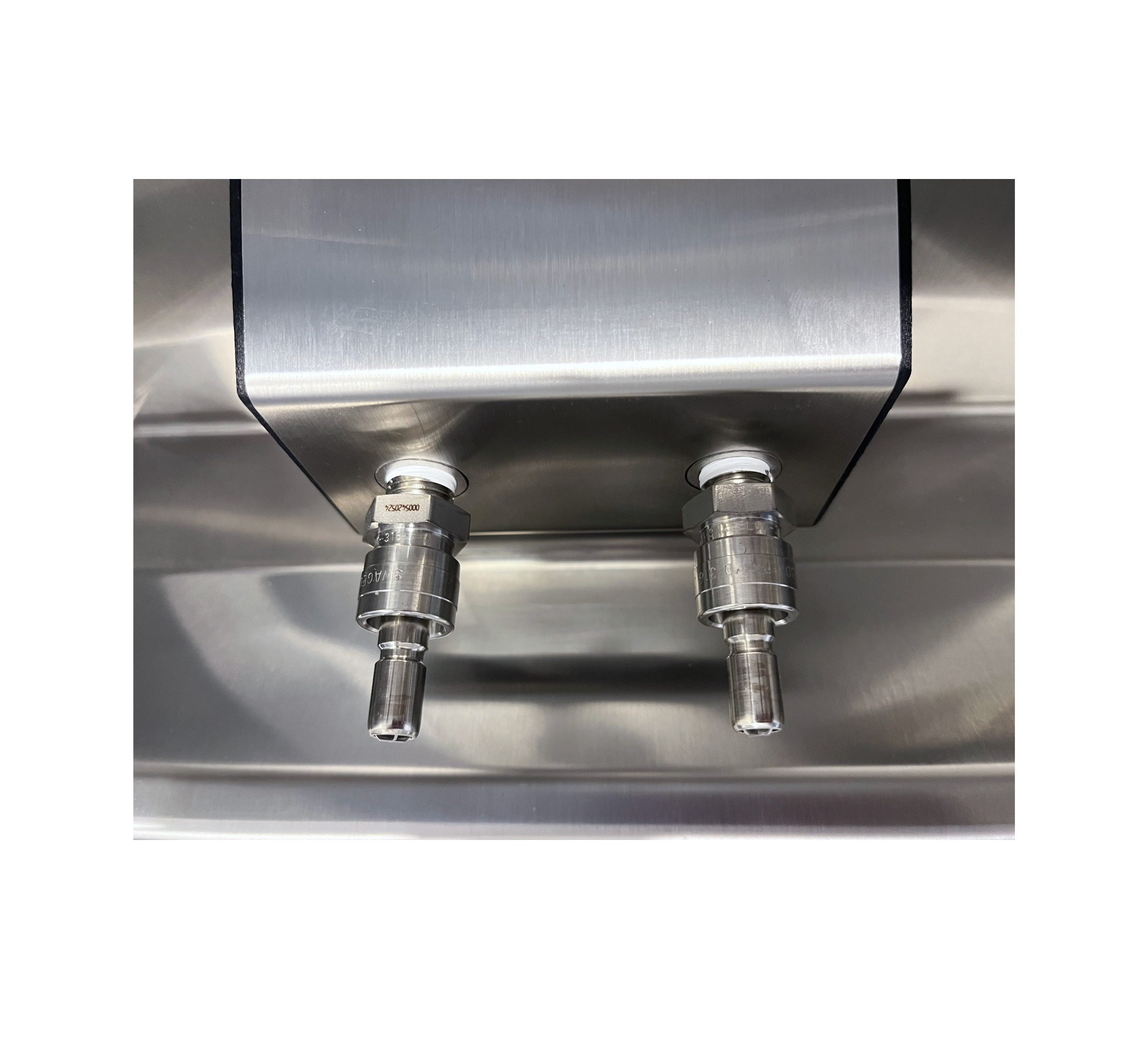

• Removable and easily cleanable wastewater drainage compartment.

Specifications of the Dialysis Wall Box Station

Material

• 16-gauge 316 stainless steel housing and 316 stainless steel quick connect fittings

Pure water supply

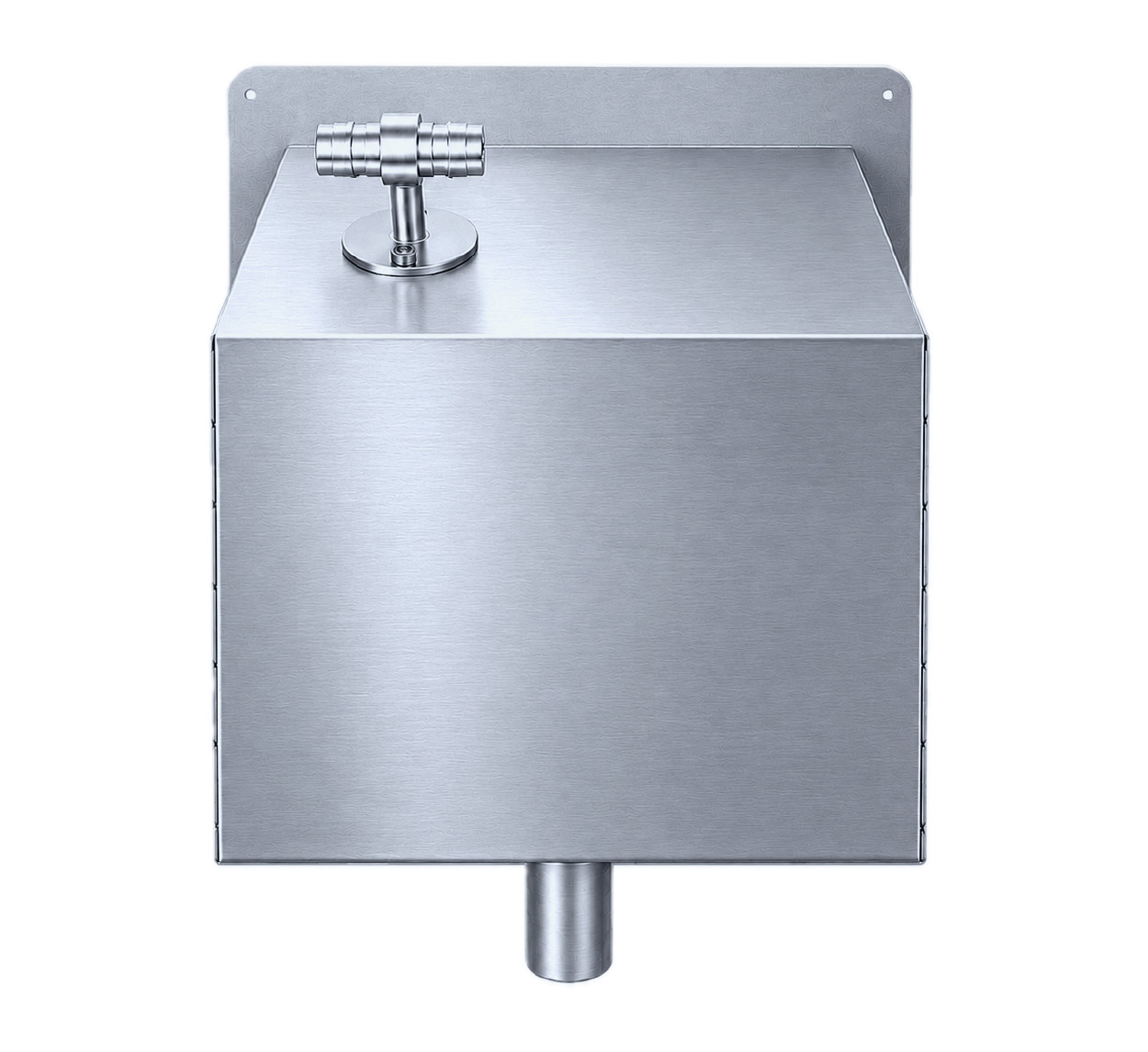

• Choice of single or double inlet tees for standard 25 mm PEX tubing at the rear (see other PEX options)

• Single or double Swagelok QC4 self-sealing, quick connect female fittings (at the front), depending on the selected configuration

• Other configurations available

Drain connection

• Single or double Swagelok QC6 self-sealing, quick-disconnect male fittings, depending on the selected configuration

• Other configurations available

Dimensions

• Wall-mounting frame: 1.375 inches (35 mm) wide

• Internal dimensions: 12.5 x 13.5 inches (318 x 343 mm)

• External dimensions: 14.875 x 15.75 inches (378 x 400 mm)

Installation

• The installation kit includes mounting hardware for standard wall boxes.

Options

• Wall box with door available as an option

• Option to add ports for supplying dialysate additives

• Custom configurations available
